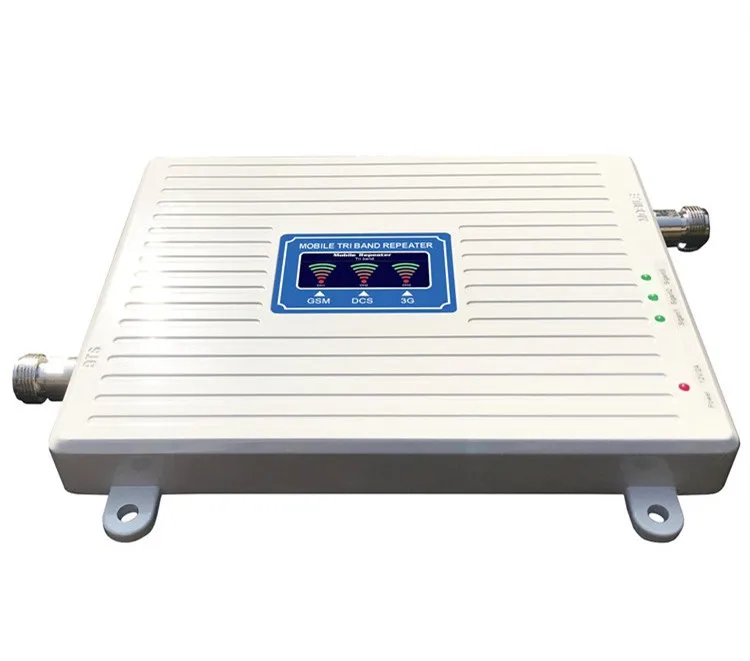

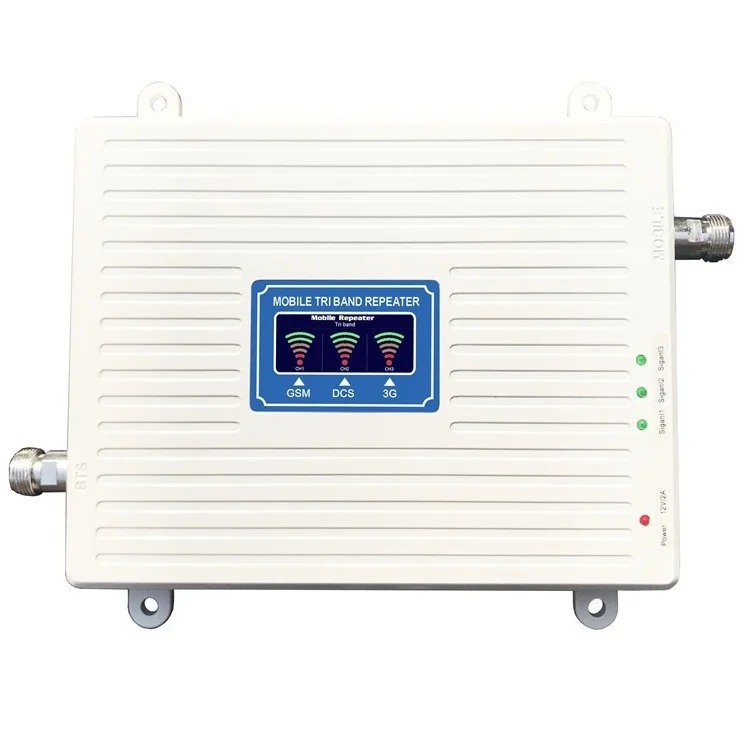

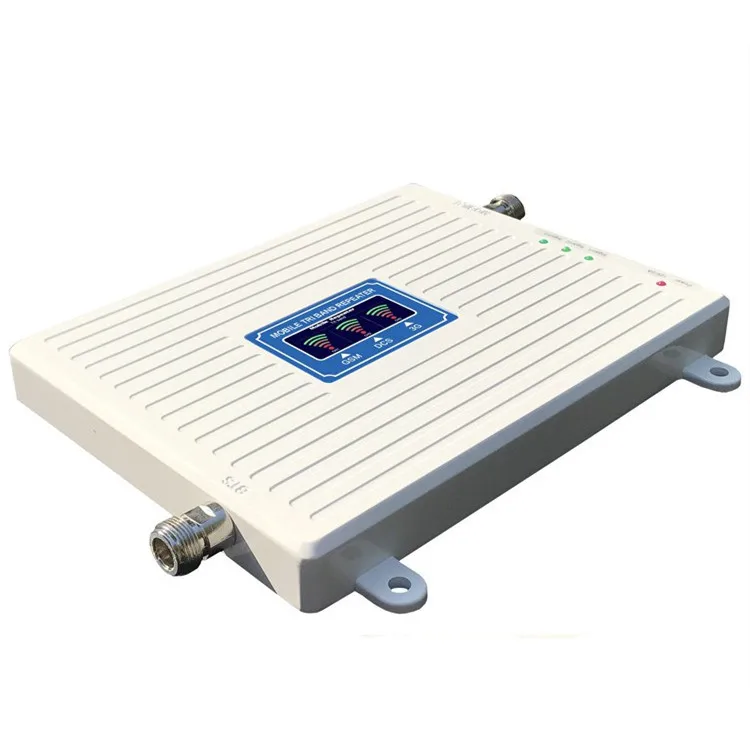

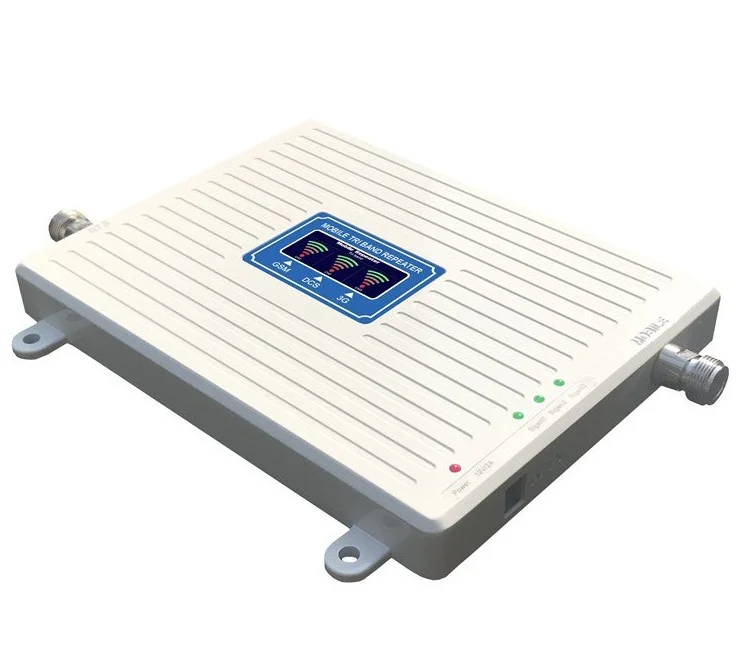

4g signal Booster 900 1800 2100 mhz Three Multi Bands Full Set Gsm Mobile Cell Phone Network signal Amplifier Repeater Booster
QAR 213,04
QAR 255,65
Reliable shipping
Flexible returns
SPECIFICATIONS
Brand Name: Shuangyueda
Color: White
Coverage: 100~500sqm without barrier
Function: Signal extender
Gain: 60~70dBi
Model Number: SYD-016
Network: 4g,GSM,3G
Output power: 18±2dBm
Place of Origin: Guangdong, China
Power supply: AC 110/220V DC 12V
Product description: GSM 2G 3G 4G LTE Mobile Network Signal Booster Repeater Amplifier
Type: 4G signal booster
Warranty: 1 year
Working frequency: 900mhz/1800mhz/2100mhz (B8/B3/B1)
Working network: GSM 2G 3G 4G LTE
Full Kit 2g 3g 4g Lte Gsm Mobile Cell Phone Network Signal Booster Repeater Amplifier For Home Office Rural Areas
700/800/850/900/1800/1900/2100/2600/AWS1700/2100mhz
B28/B20/B5/B8/B3/B2/B1/B7/B4 frequency optional
Five Band/Quad Band/Triband/Dual Band/Single Band
B28/B20/B5/B8/B3/B2/B1/B7/B4 frequency optional
Five Band/Quad Band/Triband/Dual Band/Single Band
Products Description
Have you ever felt irritable because of the weak signal on your phone?
The signal booster can help you to solve the problem.
How does it work?
1. The outdoor antenna receives the mobile signal from the signal tower.
2. The booster receives the outside signal from the outside antenna.
3. The booster improve the outside signal and send it to the indoor antenna.
4. The indoor antenna broadcasts the boosted signal to the devices inside the home.
The signal booster can help you to solve the problem.
How does it work?
1. The outdoor antenna receives the mobile signal from the signal tower.
2. The booster receives the outside signal from the outside antenna.
3. The booster improve the outside signal and send it to the indoor antenna.
4. The indoor antenna broadcasts the boosted signal to the devices inside the home.
Before buying please note!
1. Make sure the frequency band of your carrier is suitable for this item. Otherwise the device can't work for you. If you do not so clear the frequency of your phone, you would click this link www.frequencycheck.com for check the frequency band of your carriers.
2. Make sure you can receive good signal that you want to amplify on your house outside. Which must be can getting 3~5 bar signal (-70dB~90dB signal strength) on your mobile phone. Please note that the signal booster can only boost the mobile phone network signal, but it does not help to generate any signal. For example, if your outside signal has 0 bar, it can't work or bring you any signal. Below is the method of check the mobile phone signal strength.
1. Make sure the frequency band of your carrier is suitable for this item. Otherwise the device can't work for you. If you do not so clear the frequency of your phone, you would click this link www.frequencycheck.com for check the frequency band of your carriers.
2. Make sure you can receive good signal that you want to amplify on your house outside. Which must be can getting 3~5 bar signal (-70dB~90dB signal strength) on your mobile phone. Please note that the signal booster can only boost the mobile phone network signal, but it does not help to generate any signal. For example, if your outside signal has 0 bar, it can't work or bring you any signal. Below is the method of check the mobile phone signal strength.
Specification
Product |
Mobile Cellphone Network Signal Booster Repeater Amplifier |
||||
Color |
White/Black/Gold color optional |
||||
Function |
Signal extender |
||||
Application |
Village, garage, home, basement, parking lots, tunnels, hotels, office, warehouse, building |
||||
Working network |
GSM 2G 3G 4G LTE |
||||
Working frequency |
900/1800/2100mhz (B8/B3/B1 band) |
||||
Frequency range |
Band |
Uplink |
Downlink |
||
B8 900mhz |
GSM:890~915mhz |
GSM:935~960mhz |
|||
B3 1800mhz |
DCS:1710~1785mhz |
DCS:1805~1880mhz |
|||
B1 2100mhz |
3G:1920~1990mhz |
3G:2110~2180mhz |
|||
Gain |
60~70dBi |
||||
Power |
18±2dBm |
||||
With fluctuations in |
>3dbm |
||||
Stray |
<-36dbm |
||||
The third order intermodulation |
9K-1GHZ S-36/1G-12.75GHZ S-30 |
||||
Power supply |
AC 110/220V DC12V |
||||
Coverage |
100~500sqm without barrier |
||||
Installation type |
Wall installation |
||||
Operating temperature |
-10℃~+60℃ |
||||
Power plug |
EU/US/AU/UK standard optional |
||||
Connector type |
N female |
||||

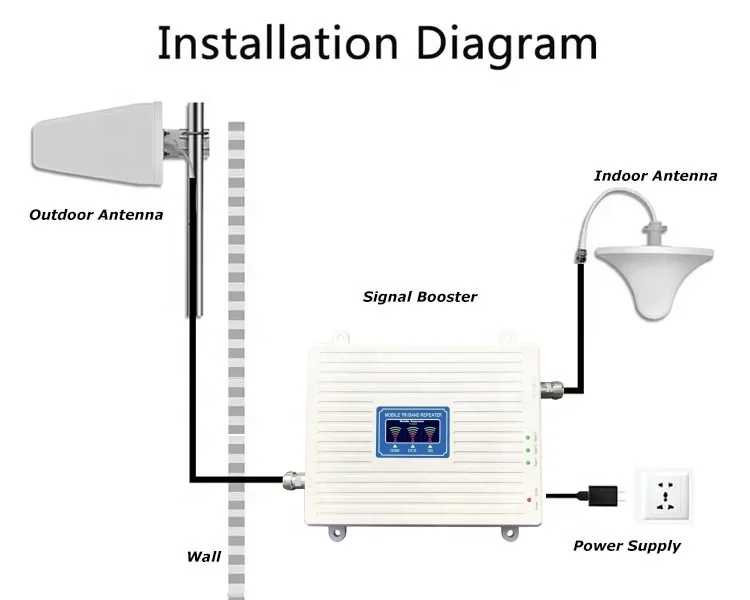

Installation Instructions
Easy 4 steps of installation:
1. Find an appropriate position where can getting strong mobile signal to install the outdoor antenna and toward to the cell signal tower. (Usually install it on the roof or balcony and at least 3 bars signal indicated on your phone display.)
2. Connect the outdoor antenna to the signal booster via coaxial cable.
3. Fixed the indoor antenna to the ceiling, connect indoor antenna to the signal booster via coaxial cable.
4. Check all the connectors is tightened then plug in power. Done!
Attention:
1. Please make sure the outdoor antenna is well isolated with the indoor antenna(s), they should not be on the same horizontal line. The outdoor antenna should be on the housetop, at least 10 meters far away from the indoor antenna(s), better with stairs or wall(s) in between. Put the indoor antenna(s) in the middle of room, far away from the window and door.
1. Please make sure the outdoor antenna is well isolated with the indoor antenna(s), they should not be on the same horizontal line. The outdoor antenna should be on the housetop, at least 10 meters far away from the indoor antenna(s), better with stairs or wall(s) in between. Put the indoor antenna(s) in the middle of room, far away from the window and door.
2. If still no signal reception after activating repeater, please check if outdoor antenna points to signal tower or elsewhere have strong signal and check if strength achieve -70dBm. Please adjust the direction of outdoor antenna until it catches good and steady signal. To ensure the result, the outdoor signal should be as strong as possible.

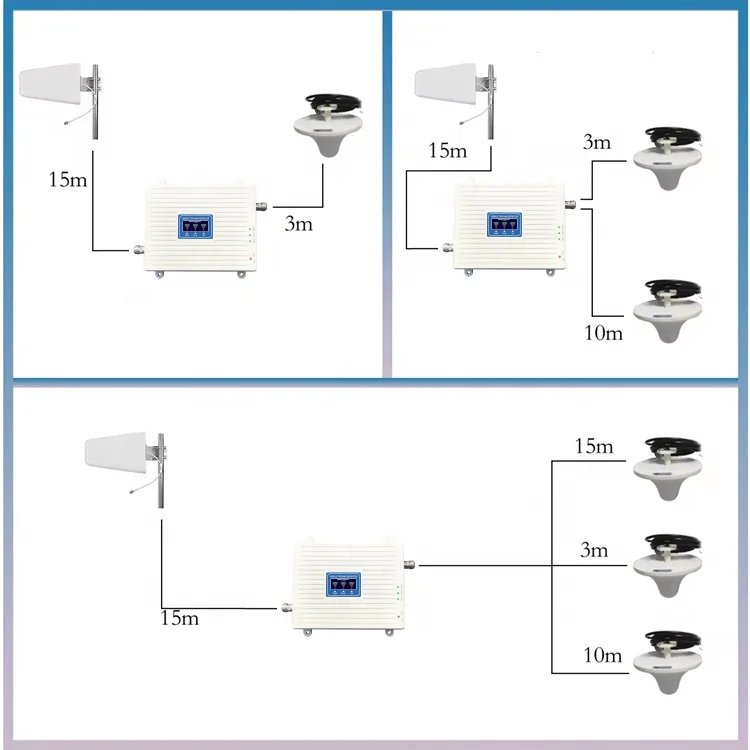

3. More indoor antennas and splitters/couplers are needed for bigger indoor coverage as one indoor antenna can cover around 100 square meters only.
3. More indoor antennas and splitters/couplers are needed for bigger indoor coverage as one indoor antenna can cover around 100 square meters only.
Packing & Shipping
1. Payment Method: Trade Assurance, T/T, Visa, mastercard, credit card, Alipay, PayPal, Western Union.
2. Shipping Method: DHL/UPS/FedEx/TNT/ARAMEX/EMS, By Train, By Sea etc.
2. Shipping Method: DHL/UPS/FedEx/TNT/ARAMEX/EMS, By Train, By Sea etc.
3. Delivery time: 2~3 days for samples, 5~7 days for bulk quantity.
4. Packaging: Neutral packing.
4. Packaging: Neutral packing.

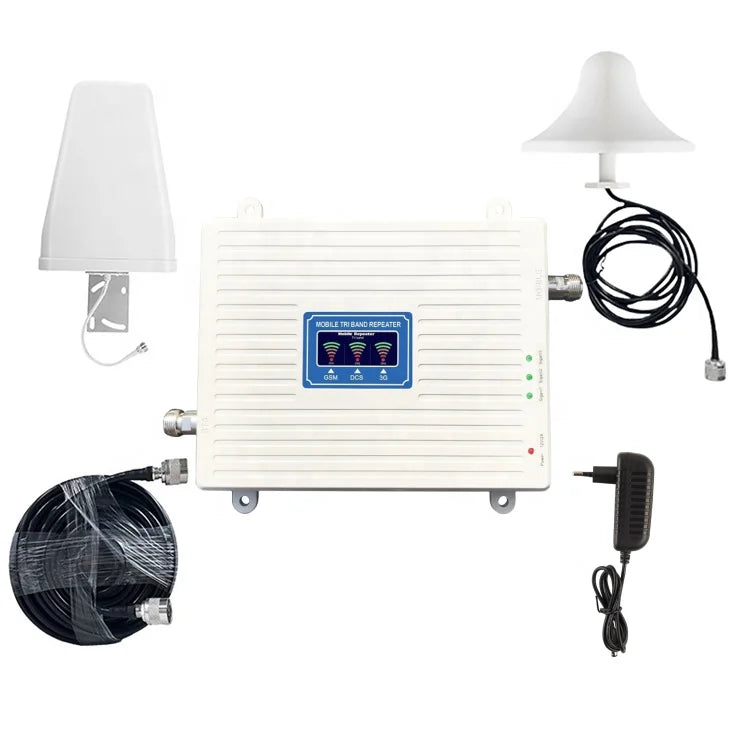

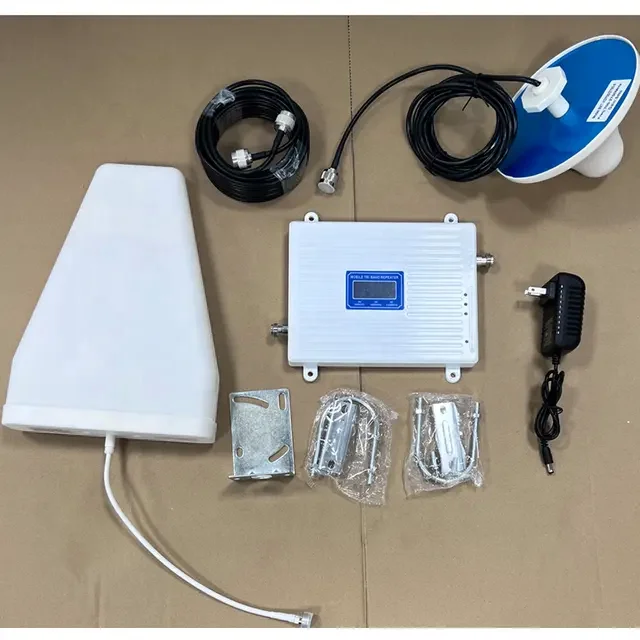

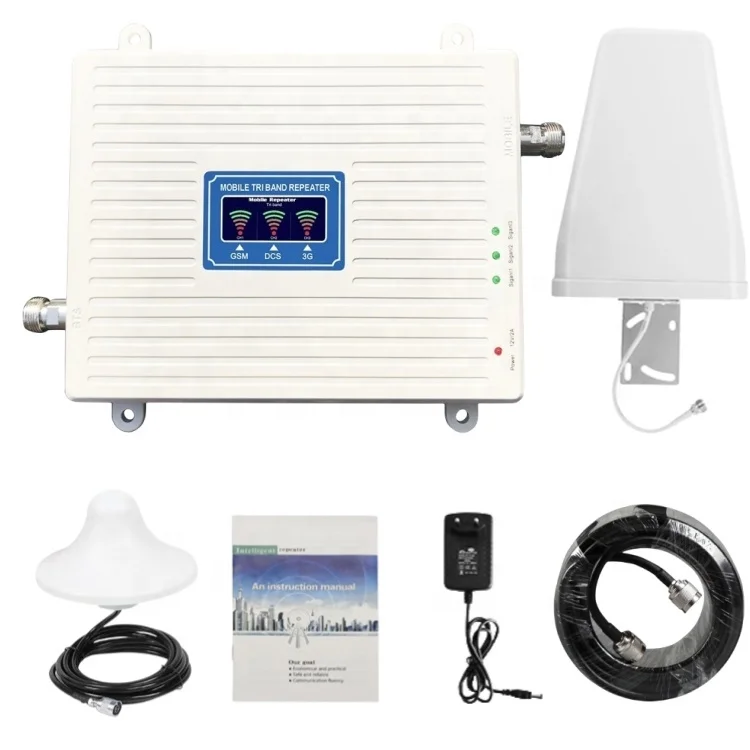

QTY |
Packing List |
1pc |
Signal booster |
1pc |
Outdoor log periodic antenna |
1pc |
Indoor ceiling antenna with 3 meters cable |
1pc |
15 Meters cable for outdoor antenna |
1pc |
Power adapter(EU/UK/US/AU optional) |
1pc |
English user manual |
Optional Accessories:
Outdoor log periodic antenna, Outdoor Omni-directional antenna, Outdoor Yagi antenna, Panel antenna, Indoor mushroom antenna with 3 meters cable, Indoor ceiling antenna, Two way splitter, Three way splitter, Four way splitter, Coupler, N-JJ male connector, N-KK female connector, N-F connector, 3M/5M/10M/15M/20M/25M cable.
Our Advantages
(1). We have own factory, OEM/ODM orders are workable, high quality and timely delivery.
(2). 700/800/850/900/1800/1900/2100/2600/AWS1700mhz
(2). 700/800/850/900/1800/1900/2100/2600/AWS1700mhz
(B28/B20/B5/B8/B3/B2/B1/B7/B4) frequency optional.
(3). Five band/Quad band/Triband/Dual band/Single band optional.
Dual Band |
Triband |
Quad Band |
Five Band |
900/1800mhz
900/2100mhz
1800/2100mhz
850/900mhz
850/1800mhz
850/2100mhz
850/1900mhz
2100/2600mhz
|
900/1800/2100mhz
850/1800/2100mhz
900/1800/2600mhz
900/2100/2600mhz
850/900/1800mhz
1800/2100/2600mhz
800/1800/2600mhz
850/1900/aws/1700mhz
|
900/1800/2100/2600mhz
850/900/1800/2100mhz
850/1800/2100/2600mhz
800/900/1800/2100mhz
800/1800/2100/2600mhz
700/900/1800/2100mhz
700/1800/2100/2600mhz
700/850/1900/aws1700mhz
|
800/900/1800/2100/2600mhz
850/900/1800/2100/2600mhz
700/900/1800/2100/2600mhz
700/850/1900/aws1700/2600mhz
|
Company Profile
SHENZHEN SHUANGYUEDA TECHNOLOGY CO., LTD. Is a manufacturer and trader specialized in the research, development and production of Signal Booster, Mobile Signal Booster, Network Signal Booster, Cell Phone Signal Booster, 2G 3G 4G Signal Booster, Single band signal booster, Dual band signal booster, Tri band signal booster, Quad band signal booster, Five band signal booster. High quality products, excellent service, reasonable price and timely delivery are our advantages. Customized orders are welcomed. Please contact us any time for more information.
