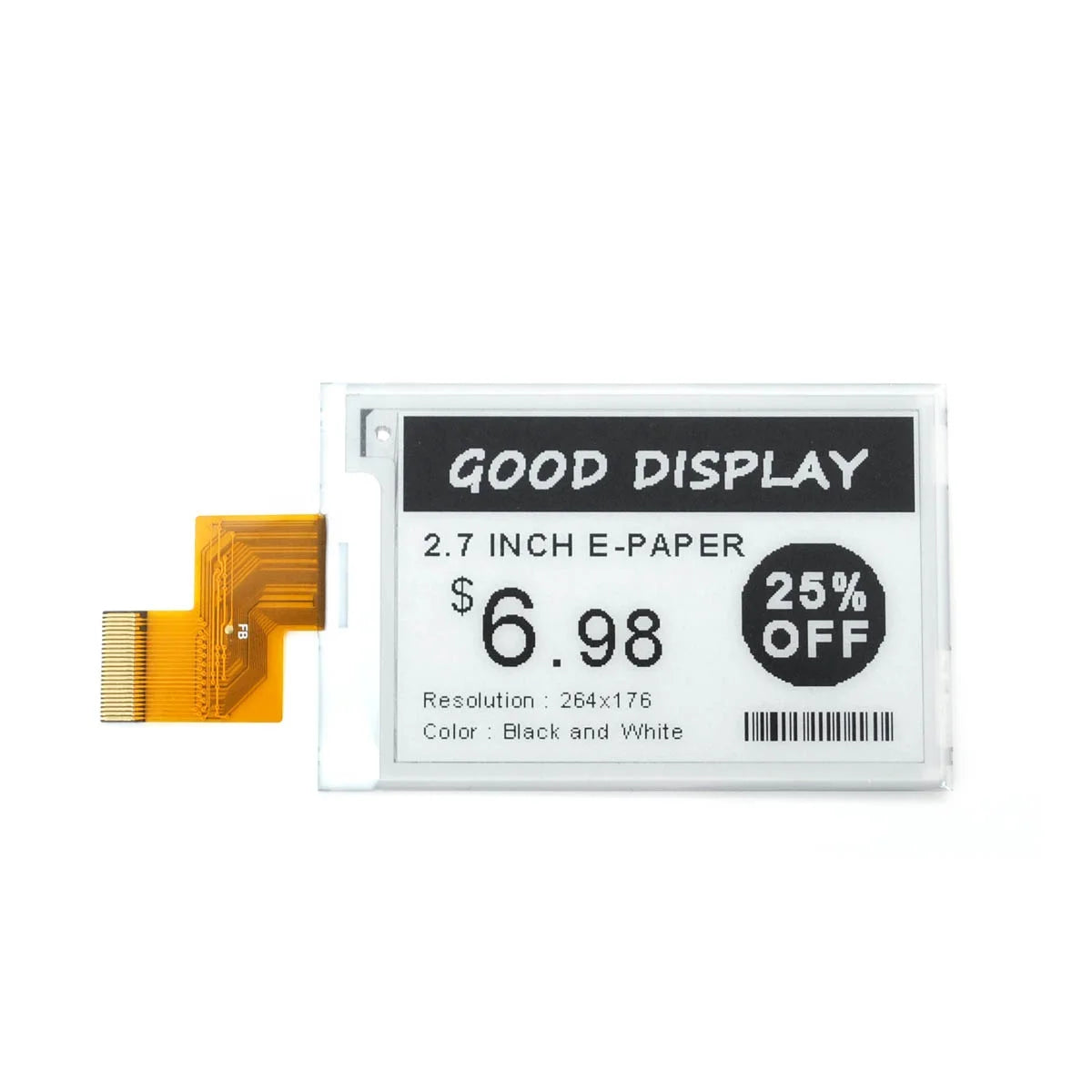

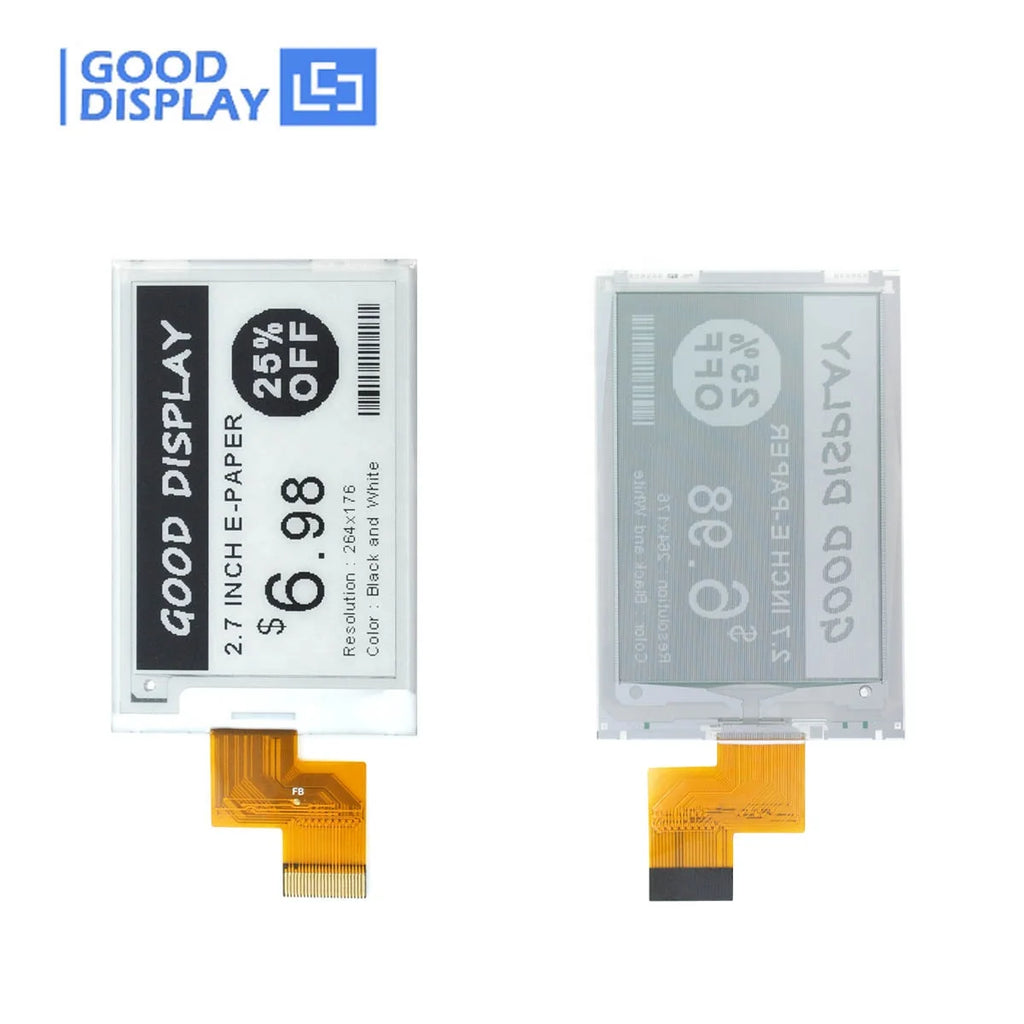

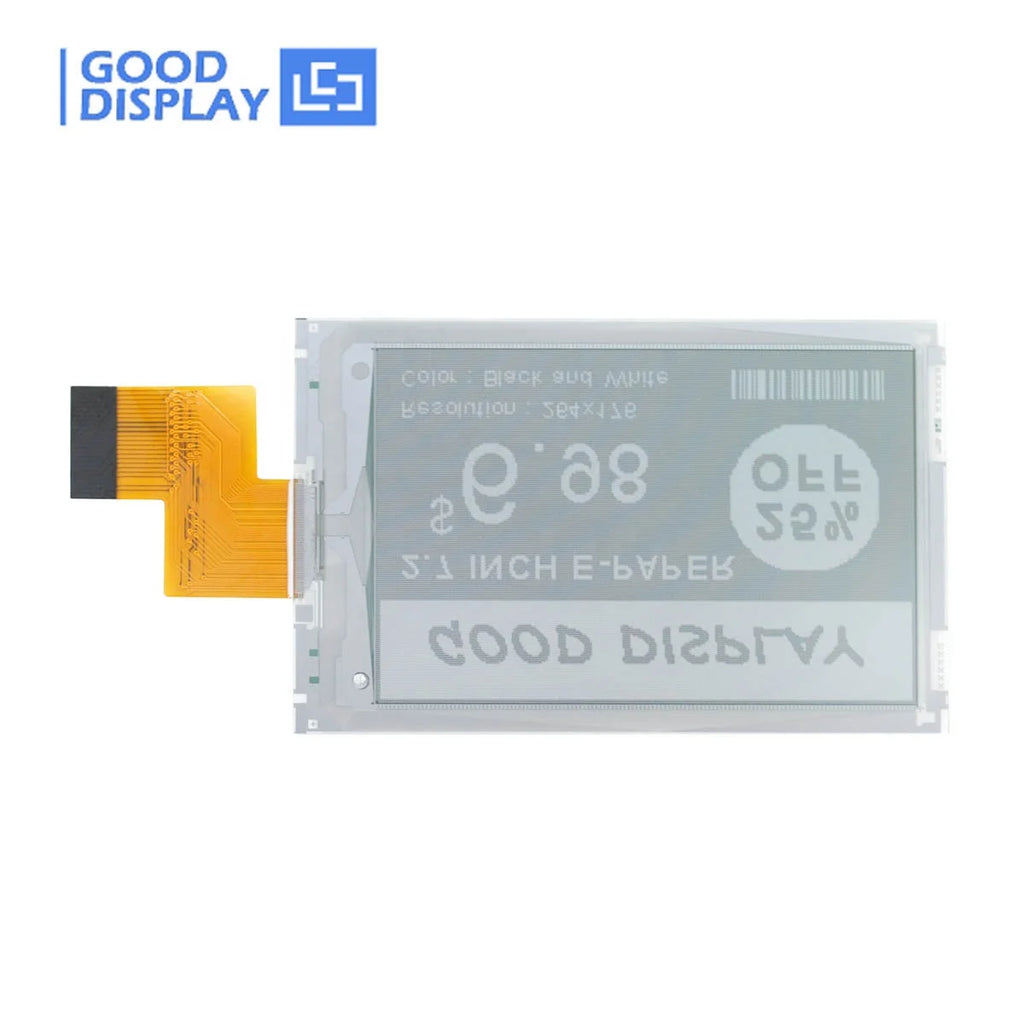

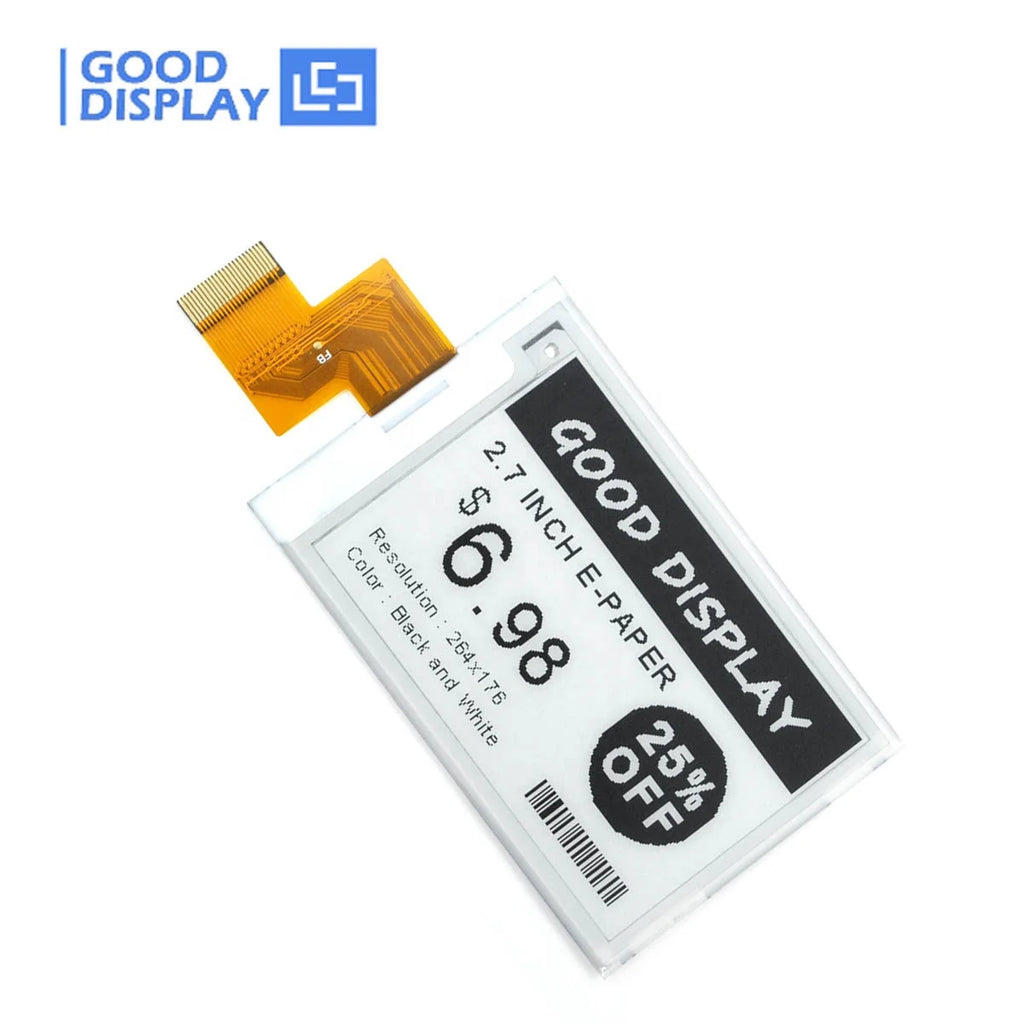

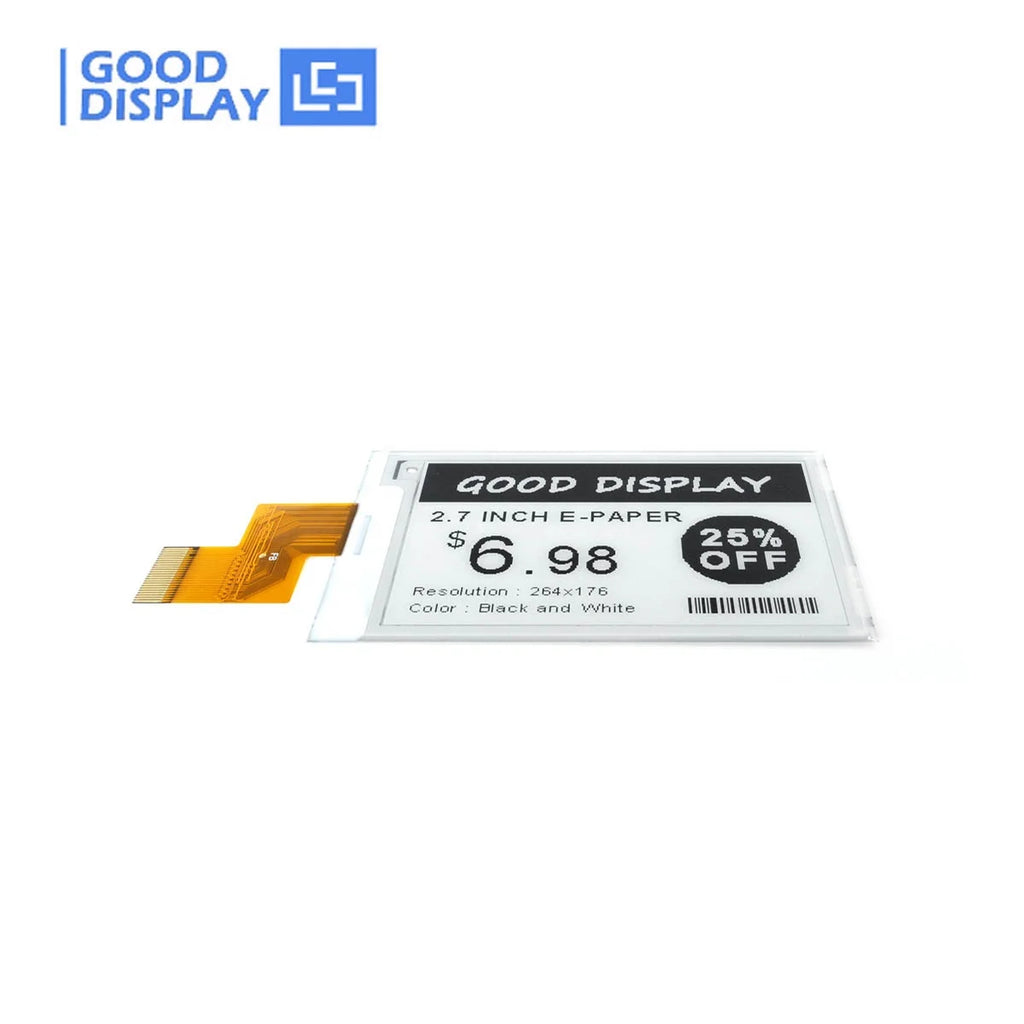

2.7 Inch 264x176 Electronic Eink Price Screen Tag Fast Refresh Epaper Display
QAR 32,05
QAR 39,33
Reliable shipping
Flexible returns
SPECIFICATIONS
Active Size(mm): 57.29x38.19
Color: Black,White

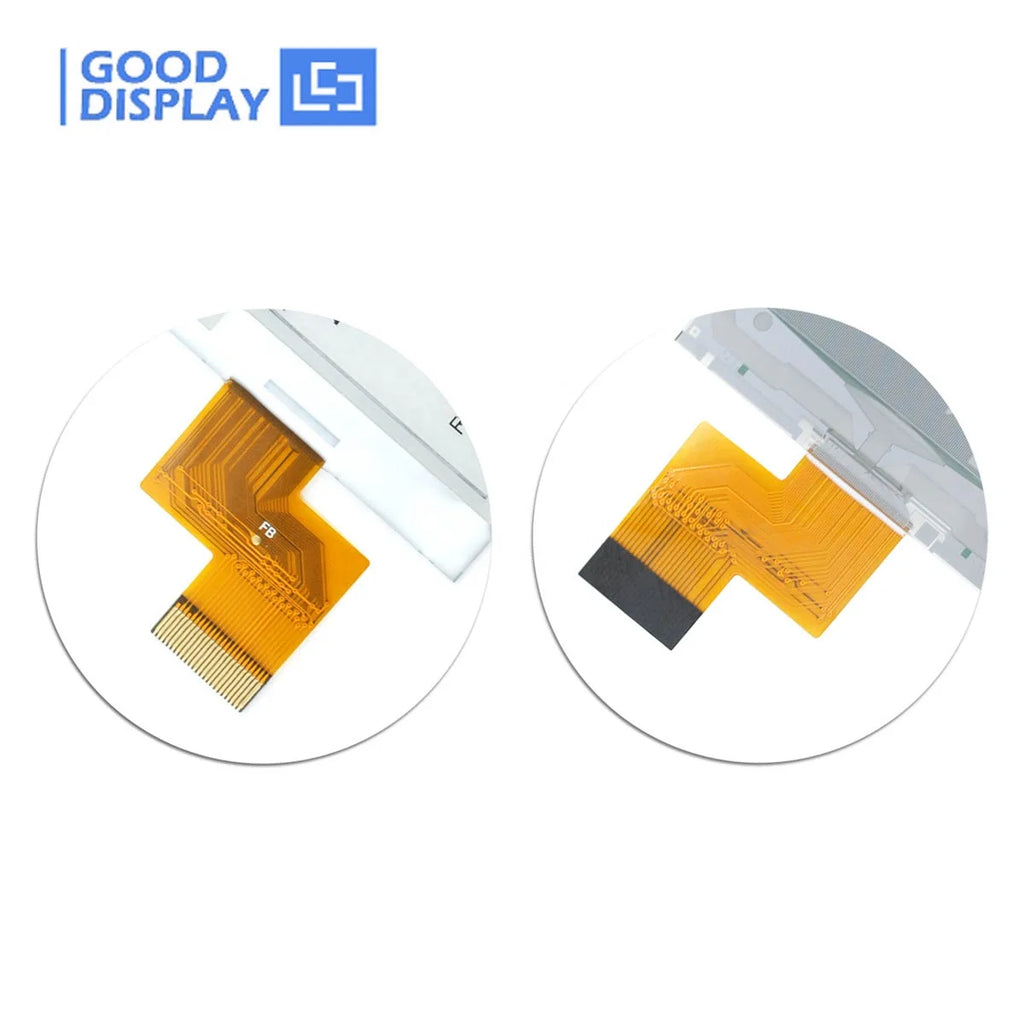

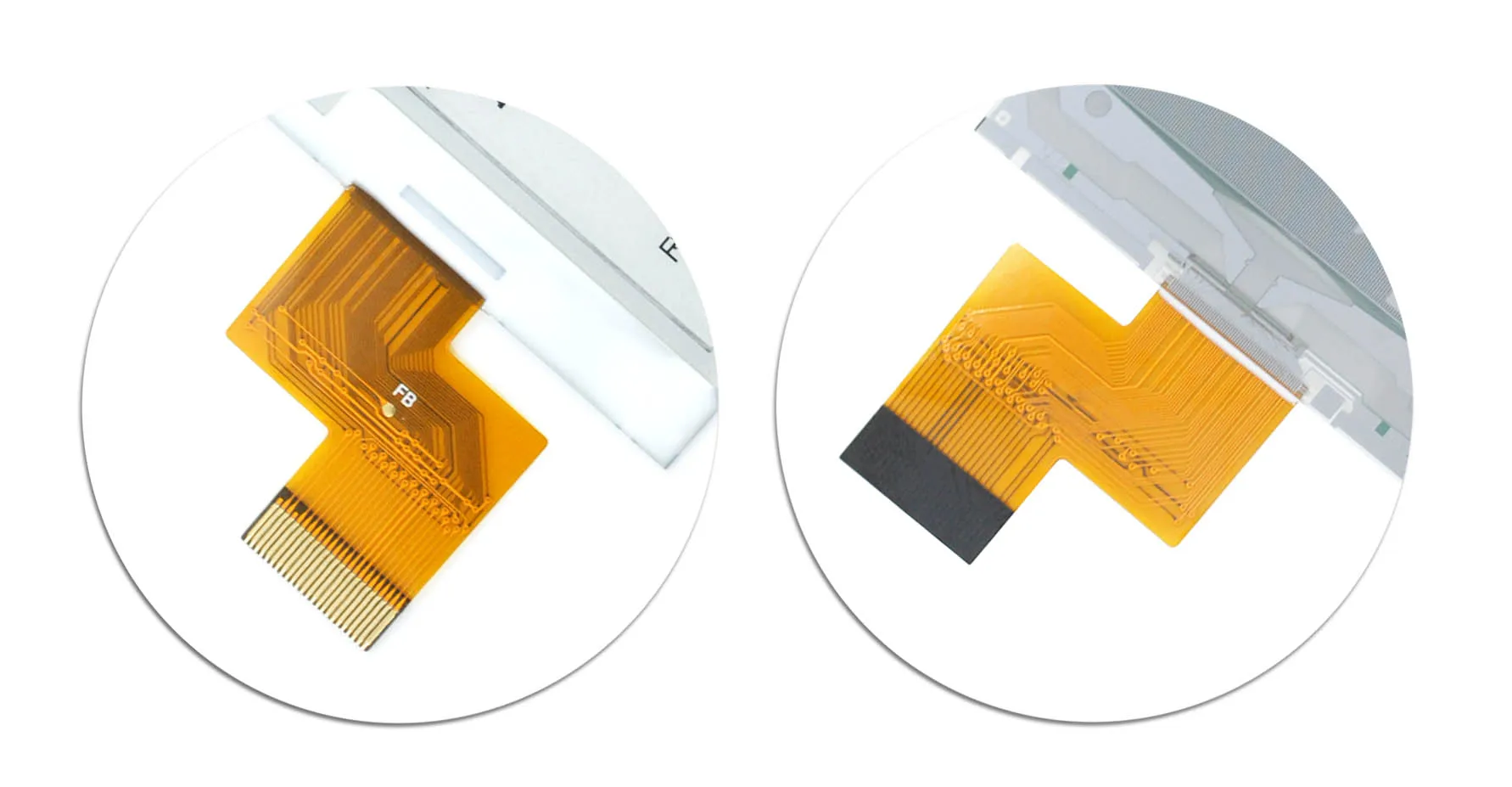

Connector: 24 Pin FPC, Pitch:0.5mm
Display Size: 2.7 inch
Interface: SPI
Operating Temp.: 0℃~50℃
Outline Size(mm): 70.42x45.8x1.0
Pixel Pitch(mm): 0.217x0.217
Place of Origin: Liaoning, China
Resolution: 264x176
Storage Temp.: -25℃~70℃
Type: PMOLED,Dot Matrix
GooDisplay 2.7 inch e paper eink display support spi interface
General Description
The GDEY027T91 is a 2.7-inch E Ink display featuring a resolution of 264x176 pixels and an SPI interface, designed for displaying black and white content. It supports three refresh modes: full refresh in 3s, fast refresh in 1.5s, and partial refresh in 0.42s. Its bistable display technology ensures that images persist even when power is disconnected, making it ideal for low-power devices powered by solar or batteries. With wide viewing angles, anti-glare surface treatment, and no blue light or radiation emissions, it suits applications in smart home devices, wearables, electronic tags, and e-readers.
Use our free e-paper software to prepare your bitmap image for this display.
PART NUMBER |
GDEY027T91 |
TYPE |
Dot Matrix |
SIZE |
2.7 inch |
IC |
SSD1680 |
RESOLUTION |
264x176 |
PPI |
117.51 |

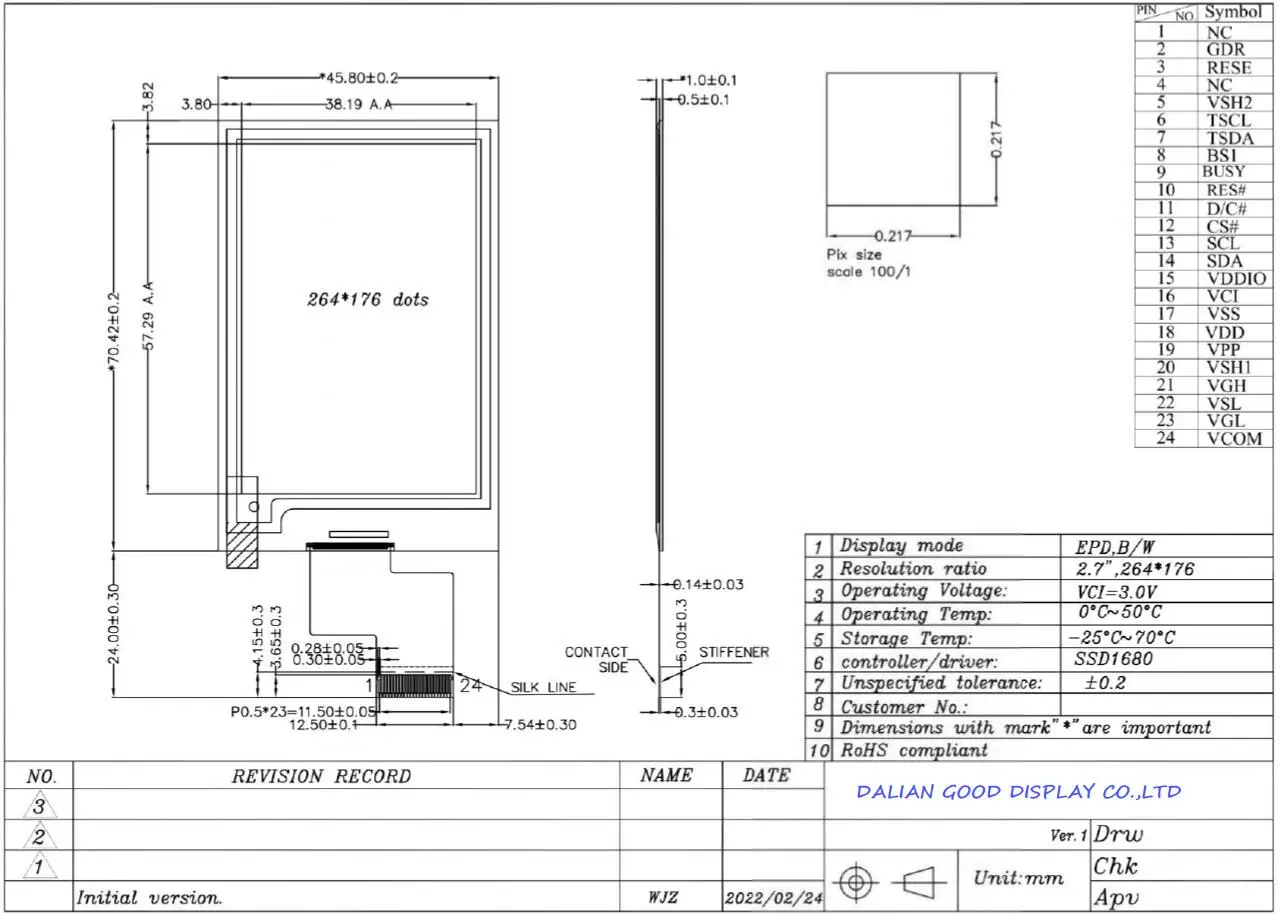

OUTLINE SIZE(mm) |
70.42x45.8x1.0 |
ACTIVE SIZE(mm) |
57.29x38.19 |
PIXEL PITCH(mm) |
0.217x0.217 |
OPERATING TEMP. |
0℃~50℃ |
STORAGE TEMP. |
-25℃~70℃ |
CONNECTOR |
24 Pin FPC |
MAX GRAYSCALE |
4 |
COLOR |
Black,White |
INTERFACE |
SPI |
FULL REFRESH(s) |
3 |
PARTIAL REFRESH TIME(s) |
0.3 |
FAST REFRESH TIME(s) |
1.5 |
POWER CONSUMPTION OF THE REFRESH(mW) |
9 |
STANDBY POWER CONSUMPTION (mW) |
0.003 |
FRONT LIGHT , TOUCH SCREEN |
Optional |
Features
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports fast refresh, teh refresh rate is 1.5s/frame
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
Other Products
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
